9V Two Speed 30 Ratio Micro Gearbox for Medical Devices , Pump Gear Motor

Product Categories

SHANGHAI DAITTO MACHINERY CO.,LTD

Contact Now

Name: 9V Two Speed 30 Ratio Micro Gearbox for Medical Devices Pump Gear Motor
Brand: DAITTO
Price: 1 USD

Place of Origin : China

Brand Name : DAITTO

Certification : ISO,CE

Model Number : DA020020-216

MOQ : 500

Contact Now

Specifications

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load				Overall Length
	Voltage	Speed	Current	Speed	Current	Torque		Overall Length
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
DA020020-36	9.0	184	80	158	215	379	37.2	43.4	1300	3900	36	18.3
DA020020-64	9.0	104	90	89	215	444	43.6	48.4	2600	7800	64	23.3
DA020020-96	9.0	69	90	59	215	667	65.4		2600	7800	96
DA020020-144	9.0	46	90	40	215	1000	98.1		2600	7800	144
DA020020-216	9.0	31	90	26	215	1500	147.1		2000	6000	216

above specifications just for reference and customizable according to requirements

Quick Details

Technical Parameter	diameter	20mm
	voltage	9V
	motor	DC brush motor
	noise level	less than 40dB
	life time	300 hours
	working temperature	-40 to 95℃
	tolerance	<0.3mm
Certification	ROHS/ISO9001/ISO14001/SGS/TS16949
Suitable for	Optical equipment, Medical device, Electronic switch(lock), Toy, Robot, Electric toothbrush, E-cigarette, and etc.
OSD Language	English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean
The basic specifications for reference only, specifications can be customized.

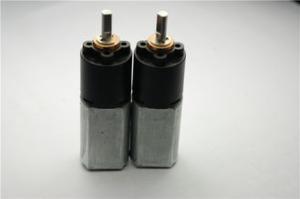

9V Two Speed 30 Ratio Micro Gearbox for Medical Devices , Pump Gear Motor Images
